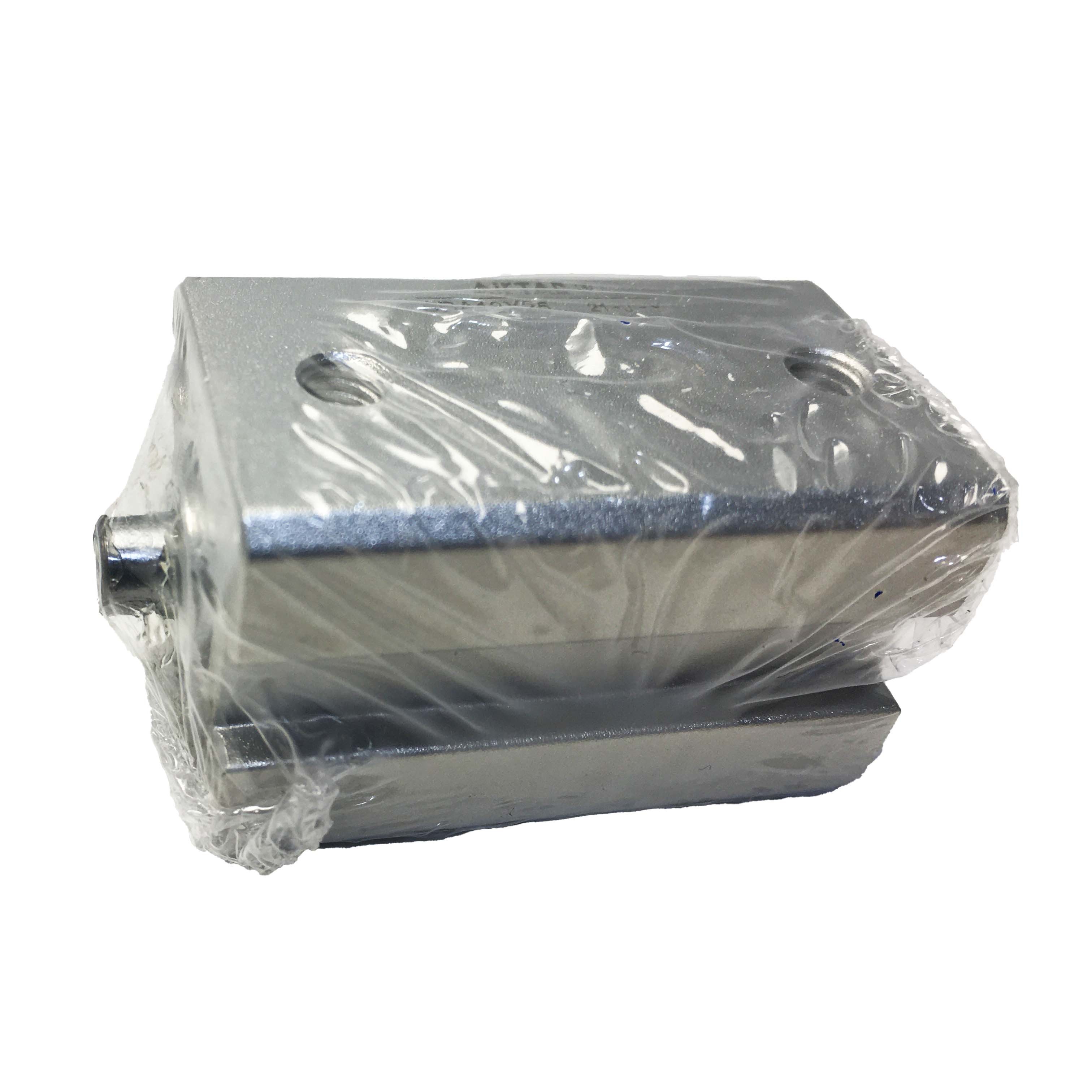

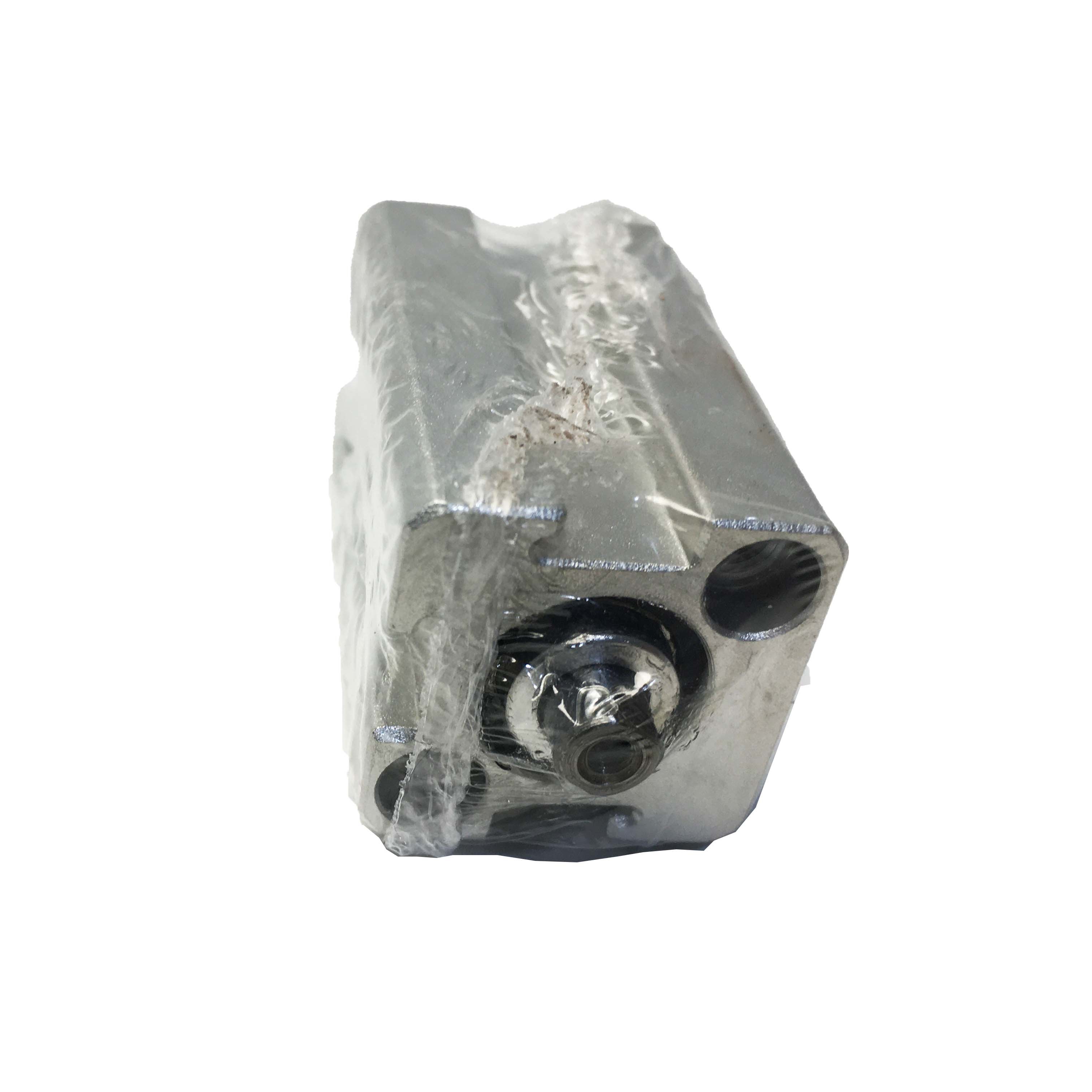

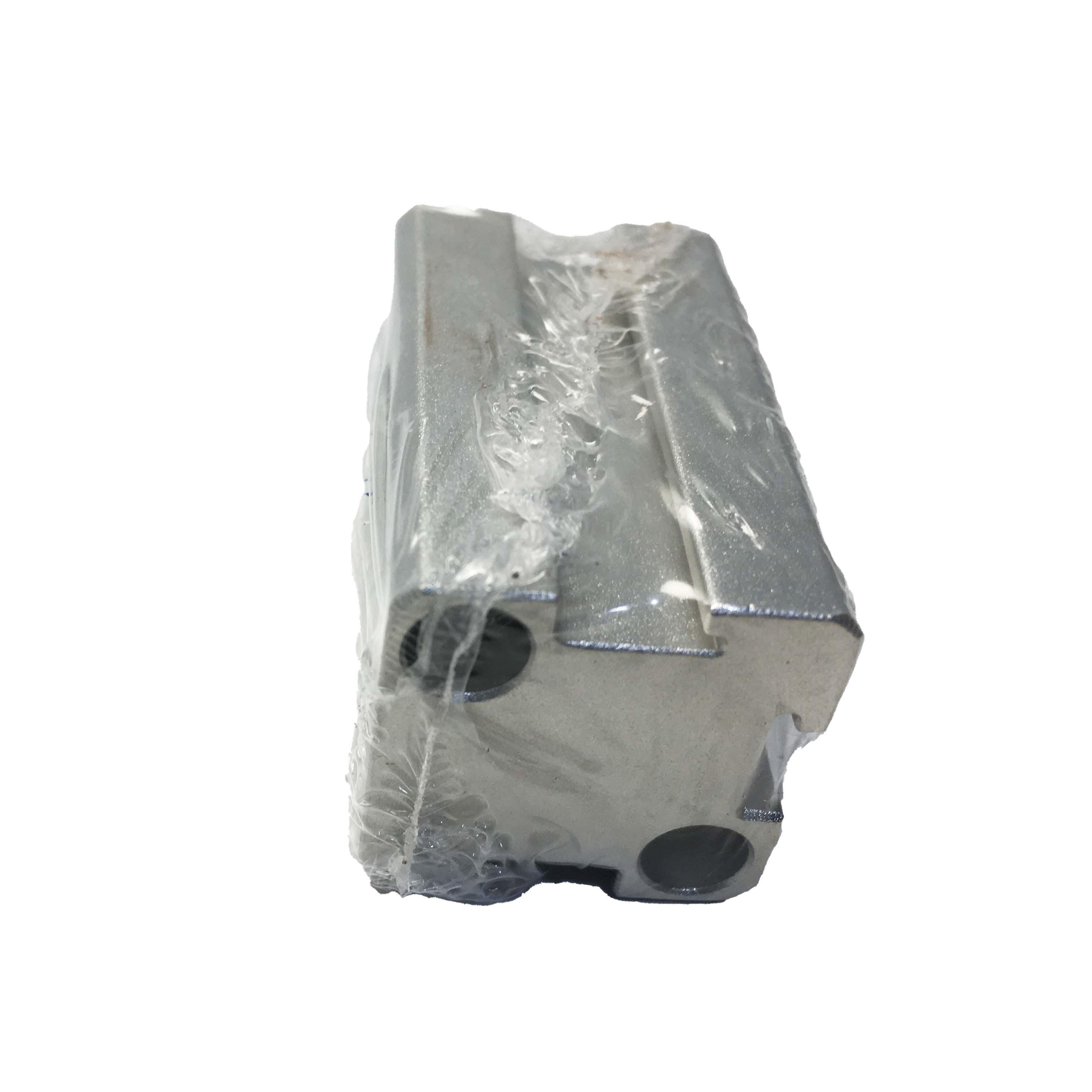

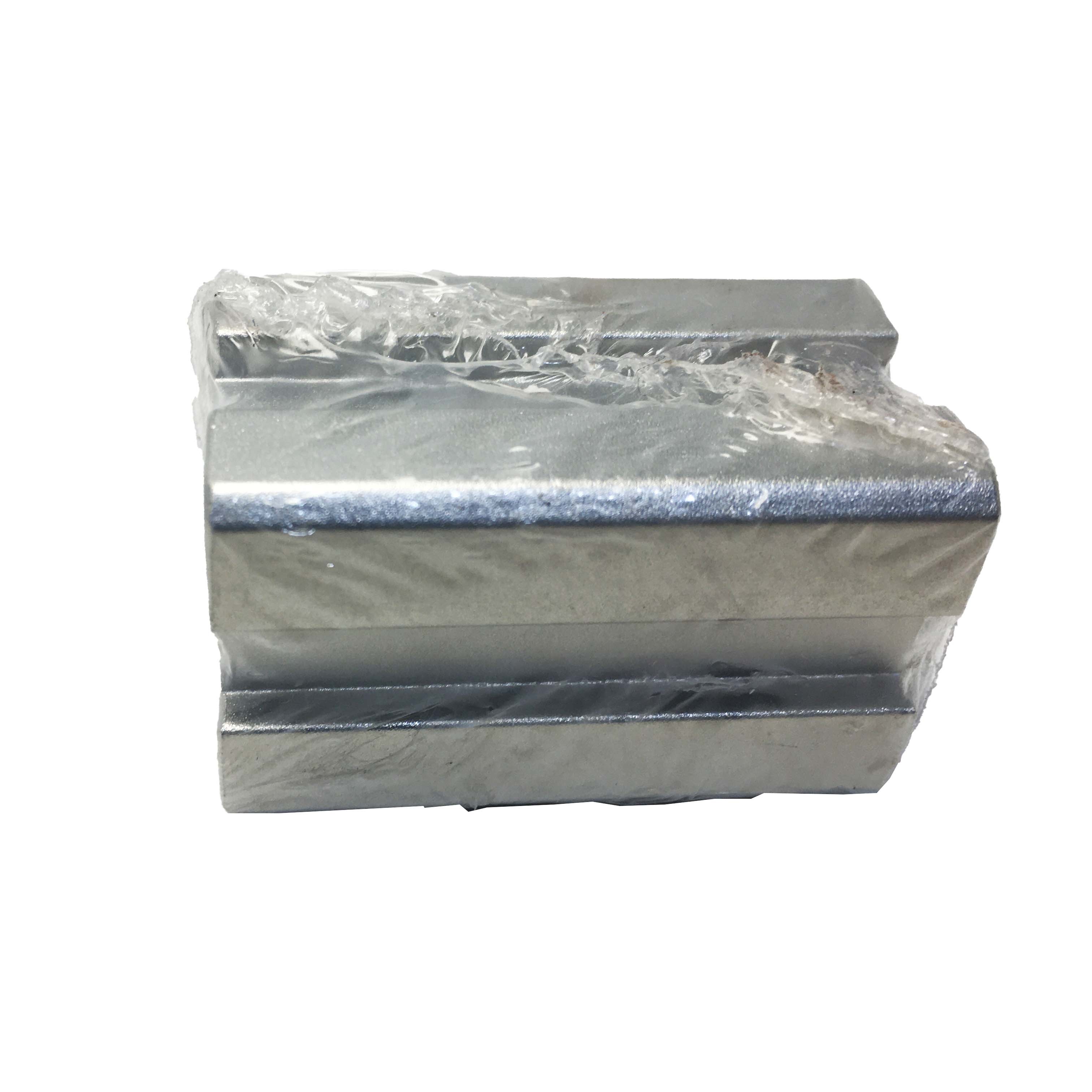

SDA12X25 Airtac Ultra-thin Air Pneumatic Cylinder SDA12X25B Brand New Sealed

Airtac SDA12X25 Ultra-thin Air Pneumatic Cylinder – Compact Precision, Maximum Efficiency

Product Overview:

The Airtac SDA12X25 Ultra-thin Air Cylinder is a brand-new, factory-sealed pneumatic actuator designed for industrial automation applications where space is limited but performance cannot be compromised. With its slim profile and robust aluminum construction, it delivers accurate, fast, and reliable linear motion, making it ideal for packaging lines, assembly machinery, and robotic systems.

Technical Data:

Product Features

1. Adopt Airtac brand manufacturing.

2. Cylinder body and back cover, piston and piston rod with riveted structure, compact and reliable.

3. The inner diameter of the cylinder body is subjected to hard oxidation treatment after rolling treatment, which is wear-resistant and durable.

4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

5. Compact structure, can effectively save installation space.

6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.

7. Various specifications of the cylinder type for choice.

Installation & Usage:

1.When load changes in the work, the cylinder with abundant output capacity shall be ed.

2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.

3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.

4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.

5.The medium used by cylinder shall be filtered to 40μm or below.

6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.

7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.

8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.

9.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the  surface. Anti-dust caps shall be added in air inlet and outlet ports.

Applications:

• Compact automation machinery and robotics

• Conveyor system actuation and packaging lines

• Pick-and-place devices in electronics and assembly

• Light-duty mechanical motion in industrial processes

• Any scenario requiring high-performance linear motion in limited space
